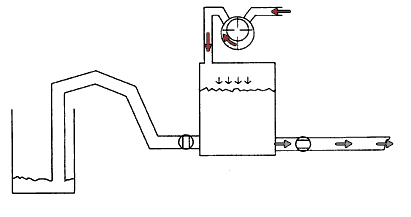

VACUUM CYCLE
Effluent transferred to pump tank using vacuum pressure... The suction side of the vacuum pump is connected to the pump tank and sucks out the air. Foul air coming out of the tank is vented through the discharge line into the sewer. No odour! The Vacuum in the pump tank moves effluent from the boat tank into the pump tank. Electronic controls monitor the effluent level and switch the pump to the discharge cycle when the pump tank is full & back to the vacuum cycle after the tank is emptied. No moving part of the pump is in contact with the effluent.

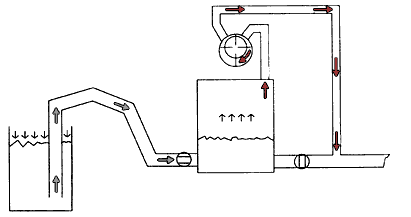

DISCHARGE CYCLE
Effluent flows from cycle tank to sewer... In the discharge cycle (pressure cycle) the pump moves the effluent from the pump tank to the sewer. The pressure side of the vacuum pump is connected with the pump tank and pressurises it. The effluent flows from the pump tank into the sewer.
